Custom Dart LS Next2 Blocks for Mega-Power Builds
Type: Engine Block
Vendor: Dart
Description:
When you are pushing >2,000 horse at the flywheel, you want to make sure that things don't start coming apart! A Dart's LS Next2 block let's you lay on the boost with confidence. These are the strongest LS blocks ever produced by Dart for reasons of both design and enhanced metallurgy.

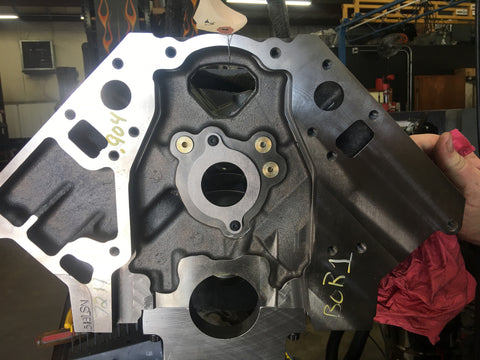

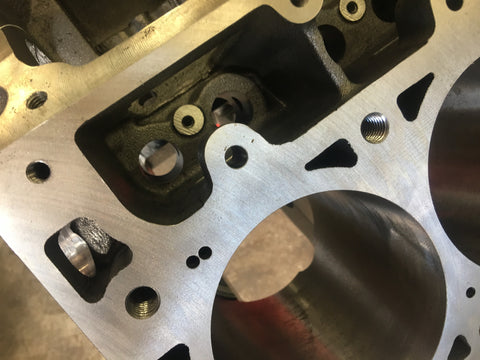

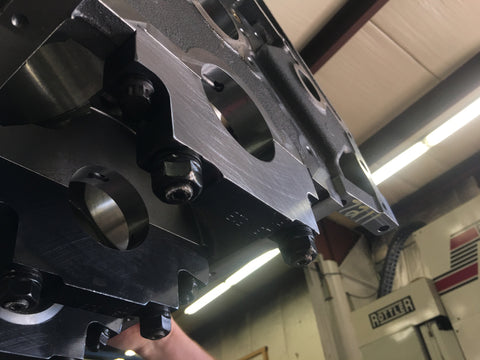

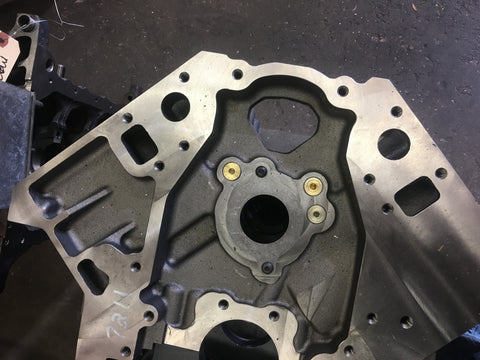

The LS Next2 blocks come from Dart with larger main caps (see photos) secured with 1/2" studs. The larger diameter studs provide 40% more clamping force compared to the standard 7/16" studs. We have both LS standard 2.55" and 2.750" main diameter blocks in stock. The larger optional main diameter reduces flexing of the crank. This in turn reduces stress on the bottom end.
This blocks may be purchased as-produced by Dart or fully machined to your specifications on our state-of-the art CNCs. For our own builds, we machine all these blocks for 1/2" head studs. We can also optionally machine for oversize lifters, fire rings, piston oilers and Jesel belt drives.
Key Dimensions
Cylinder Bore Diameters: 4.125" or larger on request
Deck Height: 9.240"
Lifter Bore Diameter: 0.842" or larger on request
The blocks fully machined blocks come with cam bearings and freeze plugs installed, painted any color you want. Truly assembly ready.
Want it built into a short block, long block or complete crate engine? No problem. We know what works and hold inventory of the high-end parts to complete your build. Whatever you need in the world of big power LS, we can help. Please call at 815-725-2727.
BUY YOUR PARTS FROM PEOPLE WHO USE THEM!
The LS Next2 blocks come from Dart with larger main caps (see photos) secured with 1/2" studs. The larger diameter studs provide 40% more clamping force compared to the standard 7/16" studs. We have both LS standard 2.55" and 2.750" main diameter blocks in stock. The larger optional main diameter reduces flexing of the crank. This in turn reduces stress on the bottom end.
This blocks may be purchased as-produced by Dart or fully machined to your specifications on our state-of-the art CNCs. For our own builds, we machine all these blocks for 1/2" head studs. We can also optionally machine for oversize lifters, fire rings, piston oilers and Jesel belt drives.
Key Dimensions
Cylinder Bore Diameters: 4.125" or larger on request
Deck Height: 9.240"
Lifter Bore Diameter: 0.842" or larger on request
The blocks fully machined blocks come with cam bearings and freeze plugs installed, painted any color you want. Truly assembly ready.
Want it built into a short block, long block or complete crate engine? No problem. We know what works and hold inventory of the high-end parts to complete your build. Whatever you need in the world of big power LS, we can help. Please call at 815-725-2727.
BUY YOUR PARTS FROM PEOPLE WHO USE THEM!
Check out the video below to see one of these Dart LSNext2 blocks at work.
