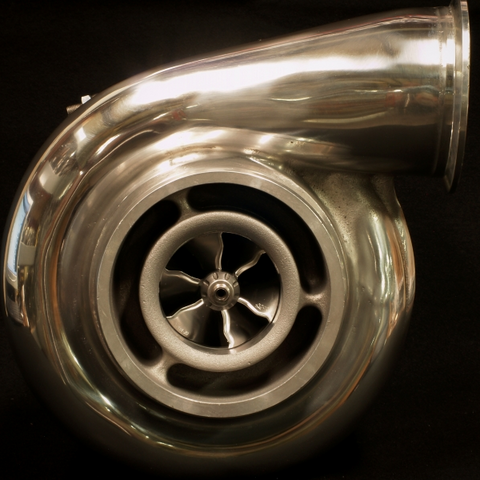

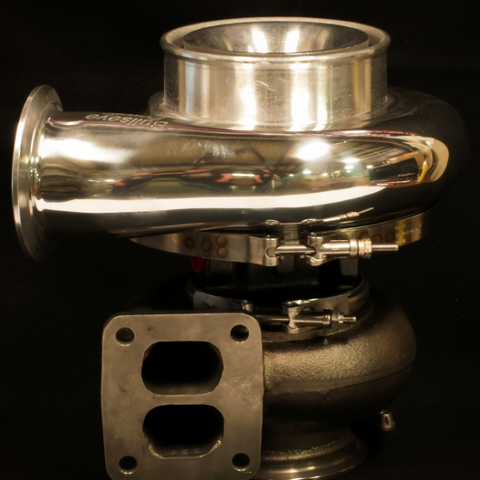

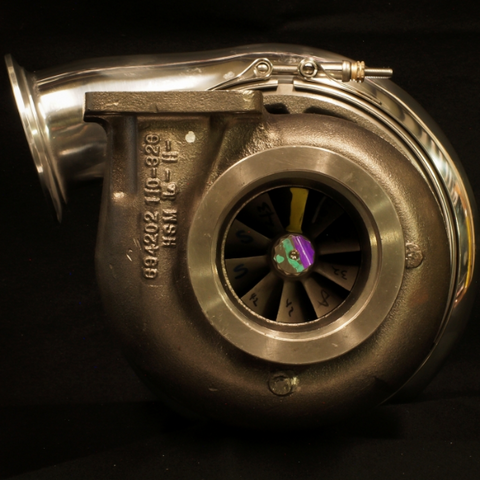

TCT BatMoWheel Series Turbocharger - 64mm (2.5" Mid Frame)
Type: Power Adders
Vendor: BullsEye Power
Description:
Bullseye Power has reinvented the compressor wheel with their exclusive leading edge technology for quicker spool times and increased flow rates, providing up to 100 horsepower more than a cast or standard-billet counterpart.
Features Bullseye Power's Triple Compression Technology TCT BatMoWheel compressor wheel.
Compressor Features:
- 64mm inducer
- Patented 6 blade TCT BatMoWheel
- 5.5" inlet
- Polished cover optional
- Lightweight billet backplate optional (3.5lbs weight savings)
|
Turbine Inlet |
TW Size (mm) |
A/R |
Turbine Outlet |
SS |
|
T-4 |
83x74 |
.90, 1.00, 1.10, and 1.25 |
V-Band |
|
|
87x80 |
.90, 1.00, 1.10, and 1.25 |
V-Band |
|
|
|
T-6 |
83x74 |
.90, 1.00, 1.10, and 1.25 |
V-Band |
|
|
87x80 |
.90, 1.00, 1.10, and 1.25 |
V-Band |
|
|
|
96x88 |
1.10, 1.32, 1.58, and 1.65 |
V-Band |
|
|
|
V-Band |
83x74 |
1.00 and 1.30 |
V-Band |
SS |
|
87x80 |
1.00 and 1.30 |
V-Band |
SS |
|
|
96x88 |
1.00 and 1.30 |
V-Band |
SS |
