Description:
These are the heads we use when going after big horsepower on our billet BBC builds. Brodix BB-3 cylinder heads boast a 24 degree valve angle. The version we use for our billet BBC builds features the optional:

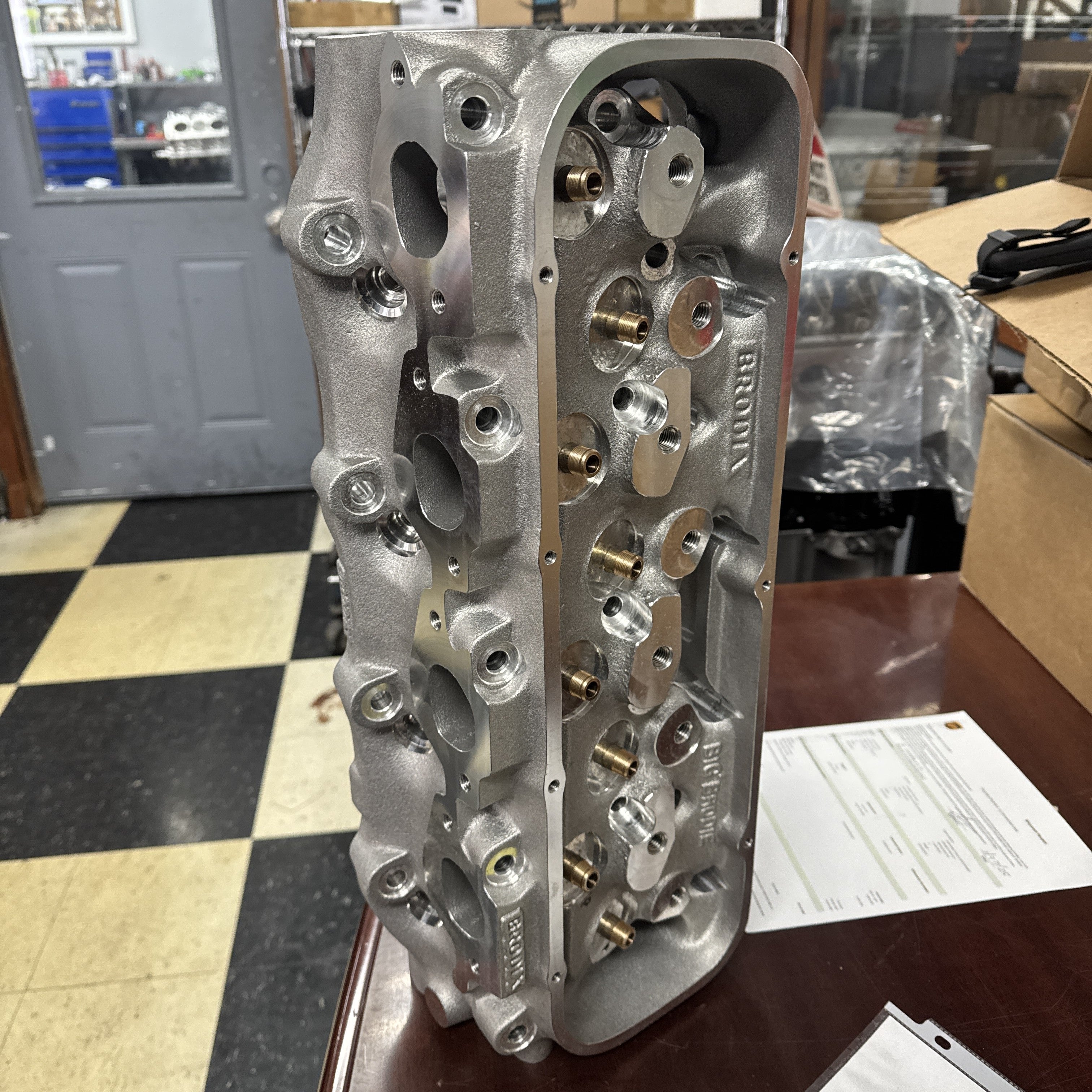

Solid Casting: paired with dry billet blocks for maximum strength. Note: standard water cooled heads are also available. The ports, chambers and flow airflow will be identical.
HIP Processing: This post-casting process greatly improves the strength of an aluminum casting. For more on this topic, watch this video explanation given by the owner of All Pro Cylinder Heads.

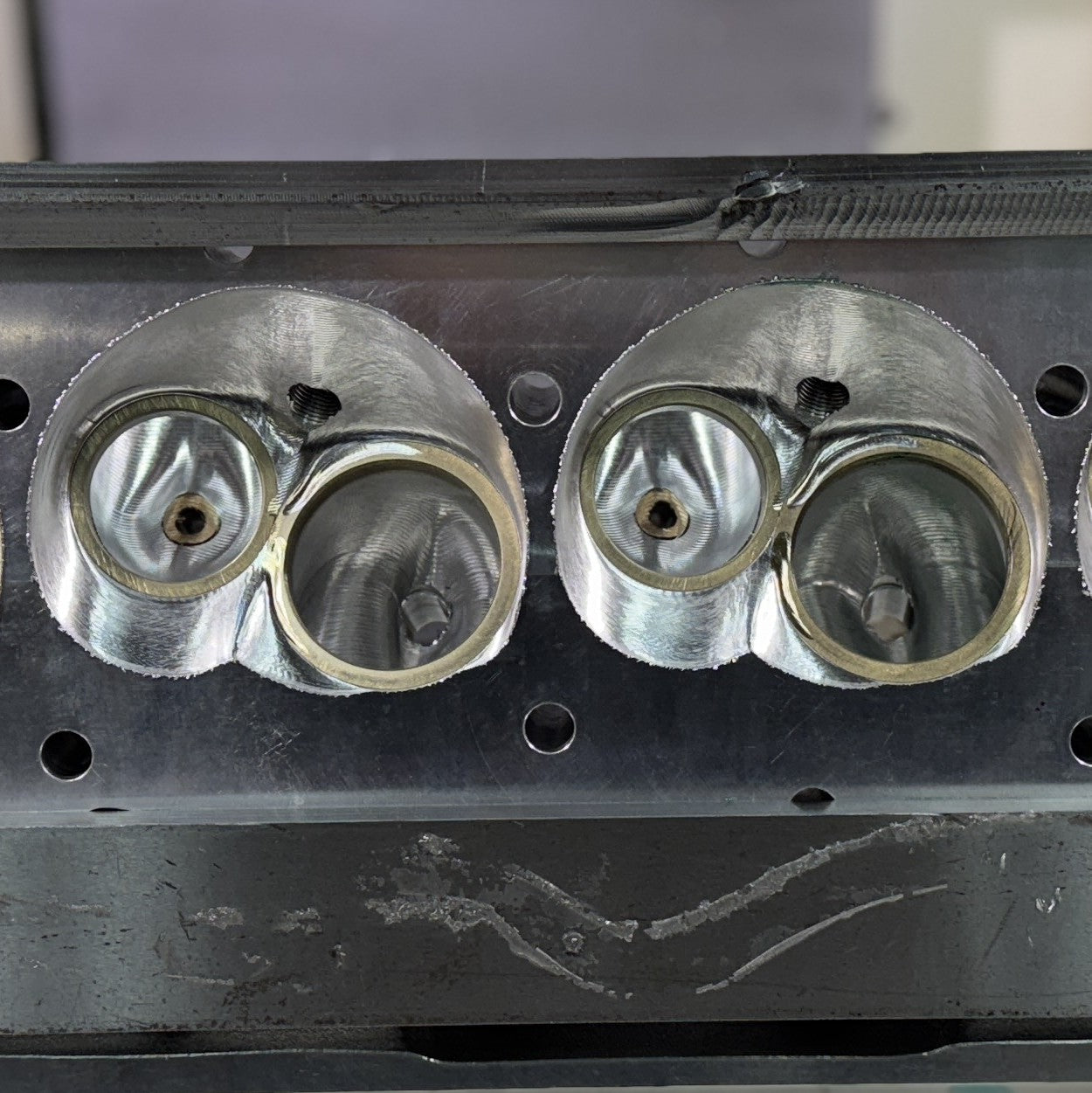

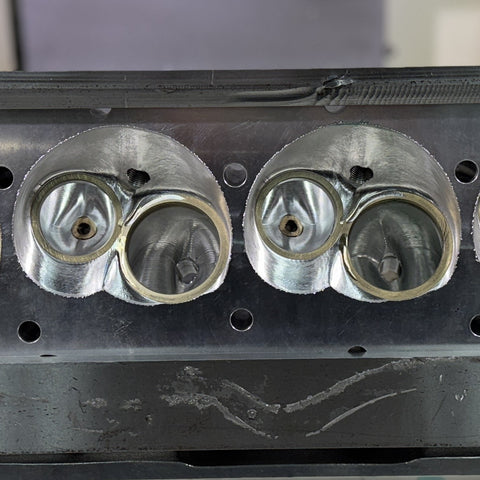

AMPCO 45 Valve Seats: This aluminum-bronze alloy provides exceptional reliability and durability. As a valve seat, it provides superior heat transfer without the toxicity of beryllium-copper.

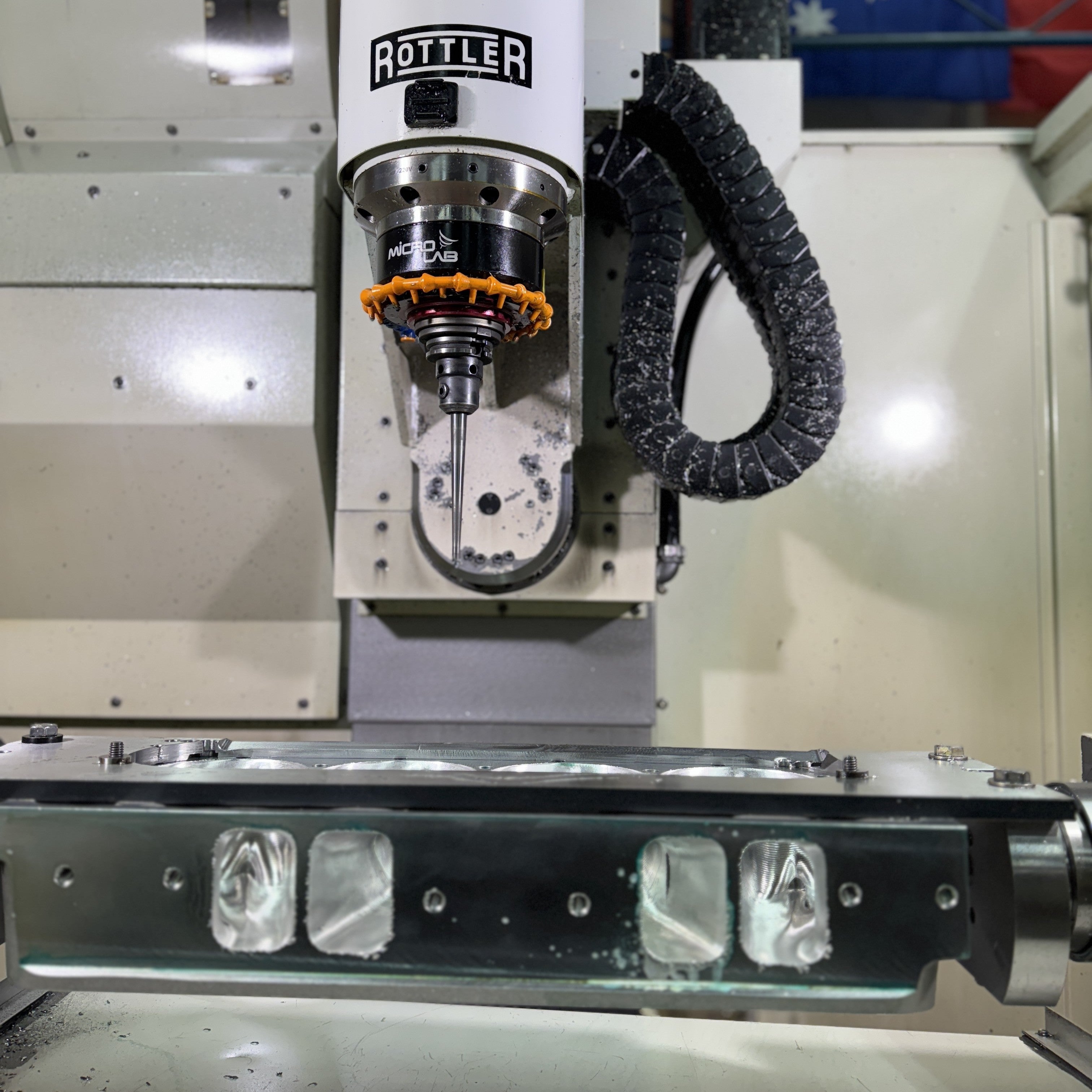

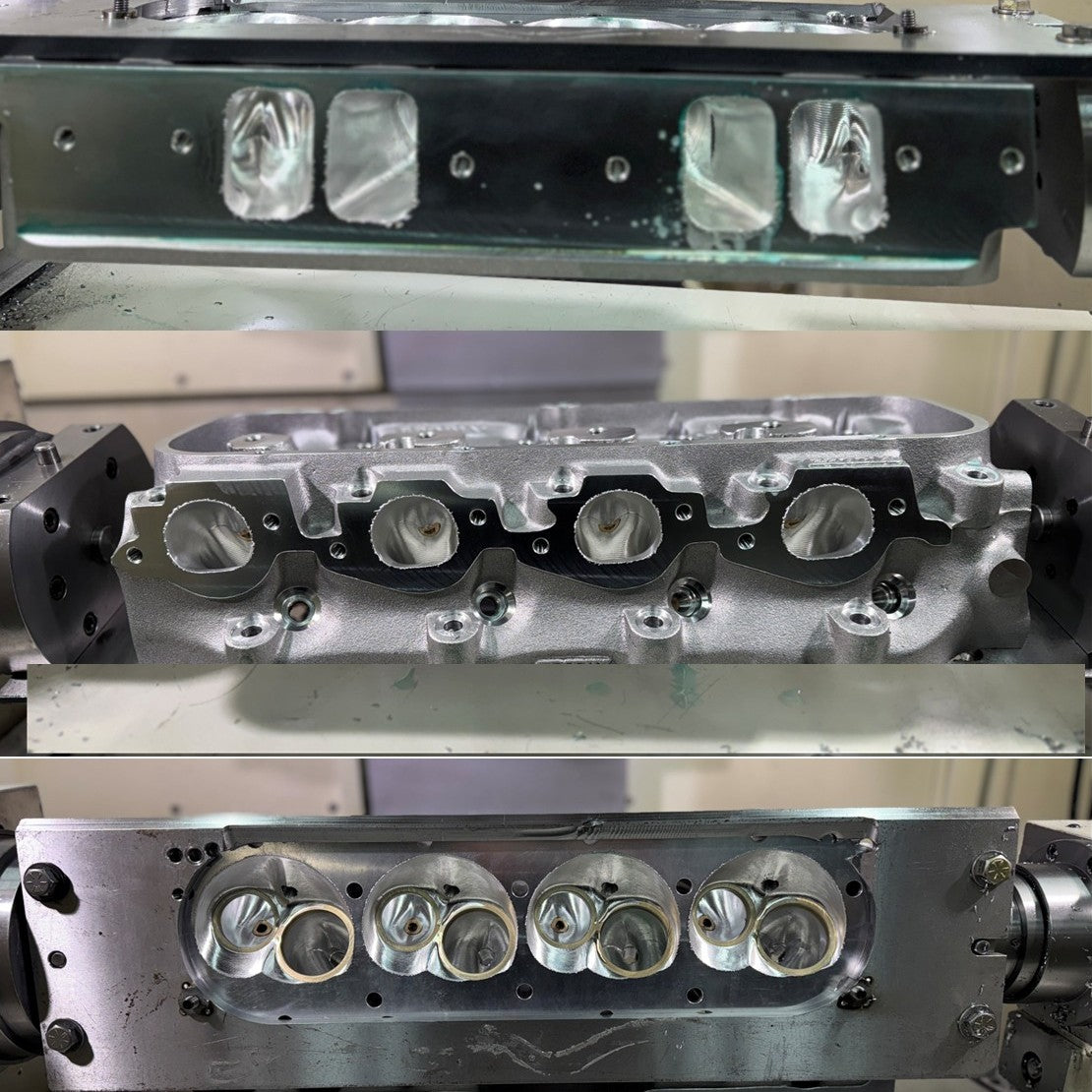

We purchase Brodix's rough porter castings for finish machining on our CNCs (see video below). The designs we impart on our 5-axis CNC are proprietary and will not be the same as anyone else's. As engine builders, our porting designs may be different than head porters chasing high flow numbers at peak lift. We focus on average flow airflow from 0 to peak lift as we find that correlates better with dyno and track results. We are also conservative about removing excessive material such as around the guides so as not to compromise the heads integrity and longevity. After coming off the 5-axis, our Newen CNC seat & guide machine performs the valve job and bowl blending in a single operation (see video down below).
The standard hardware used in the assembled heads are Brodix titanium intake and Inconel exhaust valves with a PAC spring kit.
Specifications
| Valve Lift: | 0.10 | 0.20 | 0.30 | 0.40 | 0.50 | 0.60 | 0.70 | 0.80 | 0.90 | 1.00 |
| Intake After: | 78 | 149 | 226 | 295 | 349 | 395 | 425 | 443 | 449 | 455 |
| Exhaust After: | 54 | 113 | 161 | 195 | 227 | 251 | 277 | 293 | 297 | 302 |
Valve Sizes (ins): 2.330" intake, 1.880" exhaust

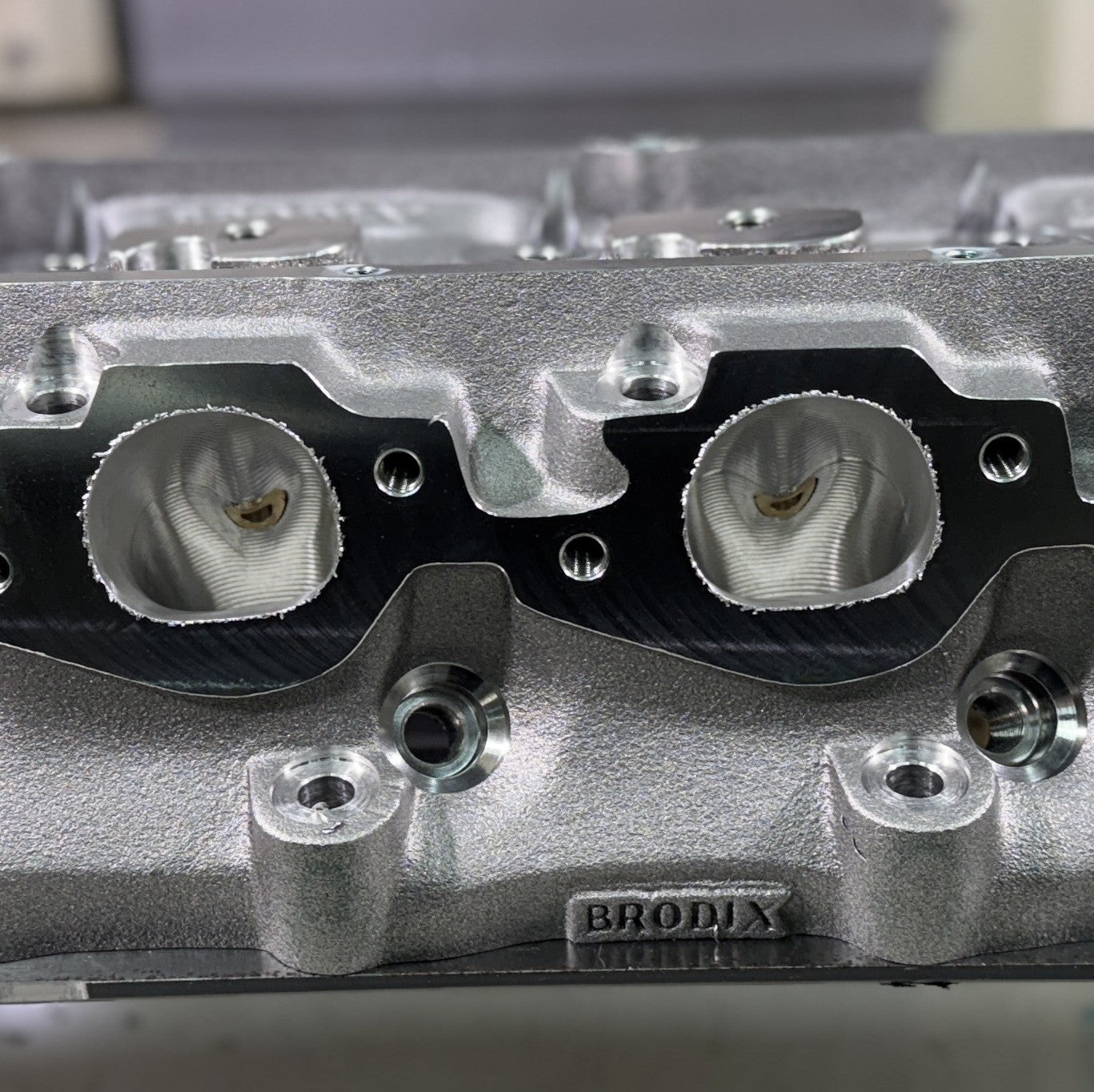

Volumes (cc's): 385 intake port, 138 exhaust port, 121 combustion chamber
As mentioned above, there is a wide range of options which also includes valves, spring kits and intake port shape (rectangular or oval). Please call us at 815-725-2727 to discuss your requirements.
Brodix BB-3 Heads as Porter Castings
CNC Cylinder Head Machining
